Product Introduction

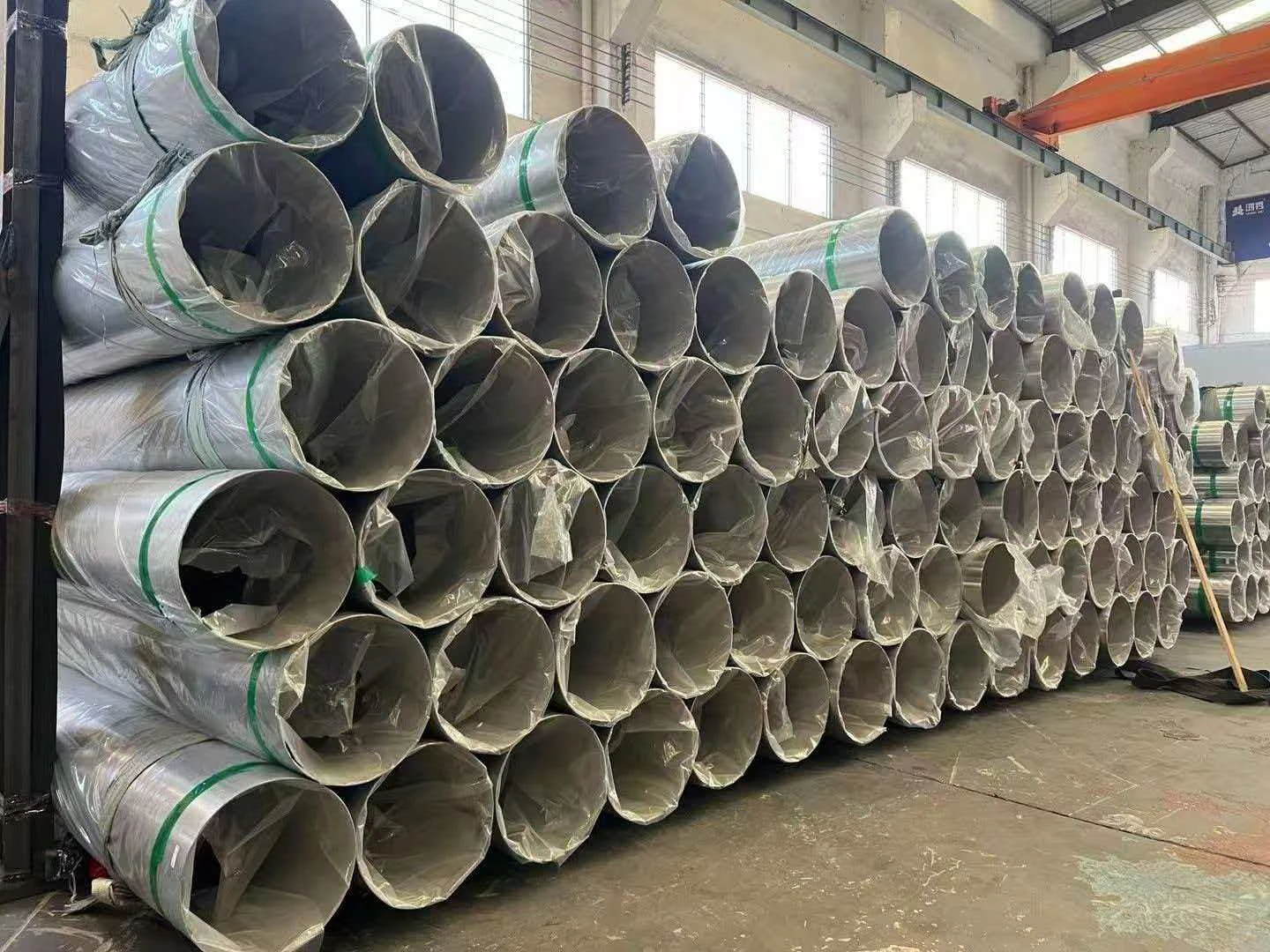

Stainless steel welded round pipe with smooth welds, polished surfaces, and corrosion resistance for fluid transport, equipment piping, and industrial pipeline systems.



Key Features

• Formed by welding rolled plate, with a flat weld seam and smooth internal and external polished surfaces.

• 304/316 stainless steel resists acid, alkali, and seawater corrosion without rusting.

• Standard roundness and uniform wall thickness reduce fluid conveying resistance.

• The pipe can be cut, bent, and welded with flanges to match various pipe fittings.



Technical Specifications

• Material: China 304/316/316L

• EU 1.4301/1.4307/1.4401/1.4404/1.4372

• USA UNS S30400/S30403/S31600/S31603

• Japan SUS304/304L/316/316L

• Russia 08X18H10/03X18H11/08X17H13M2/0317H14M3

• Standards: China GB/T 12771, GB/T 19228, JG/T 539, GB/T 3280

• EU EN 10217, EN 10296, EN 10312, EN 10357

• USA ASTM A312/A358/A554/A554M/A269/A269M/A270/A270M

• Japan JIS G3459/G3448/G3447/G3463

• Russia GOST 11068/R 71800

• Outer Diameter: 50-600 mm, mainly large-diameter pipes

• Wall Thickness: 2-12 mm; common fixed length is 6 m per pipe

• Surface: industrial original finish or internal and external polished finish



Applications

• Chemical fluid pipelines for acid, alkali, and corrosive liquid transfer.

• Water treatment projects such as sewage, seawater desalination, and purification plant pipelines.

• Ventilation and smoke-exhaust systems such as factory exhaust ducts and environmental dust-removal ducts.

• Municipal infrastructure such as coastal water supply and drainage and large equipment material-transfer pipelines.



Ordering & Quality Documentation

Please provide the required steel grade, outside diameter or section dimensions, wall thickness, length, applicable standard, surface finish or coating, order quantity and delivery destination. If the pipe is intended for a specific system, include the design and inspection requirements.



For project procurement, specify any required material test certificate (MTC), inspection report, certificate of origin or other shipment documentation in your inquiry. Document type, availability and applicability must be confirmed for the exact material grade, shipment and order; no blanket certification is implied.



Product FAQ

Q: Which dimensions should be included in an inquiry?

A: Include outside dimensions, wall thickness, length, steel grade, required standard and order quantity.



Q: Can inspection documents be requested?

A: Specify the required inspection or material documents in the inquiry; availability must be confirmed for the selected product and supply batch.



Request a Quote

Send MGTSP the required product specification, quantity and destination for a quotation. Any listed grades, processing options, inspection documents and delivery terms remain subject to order confirmation.
