Product Introduction

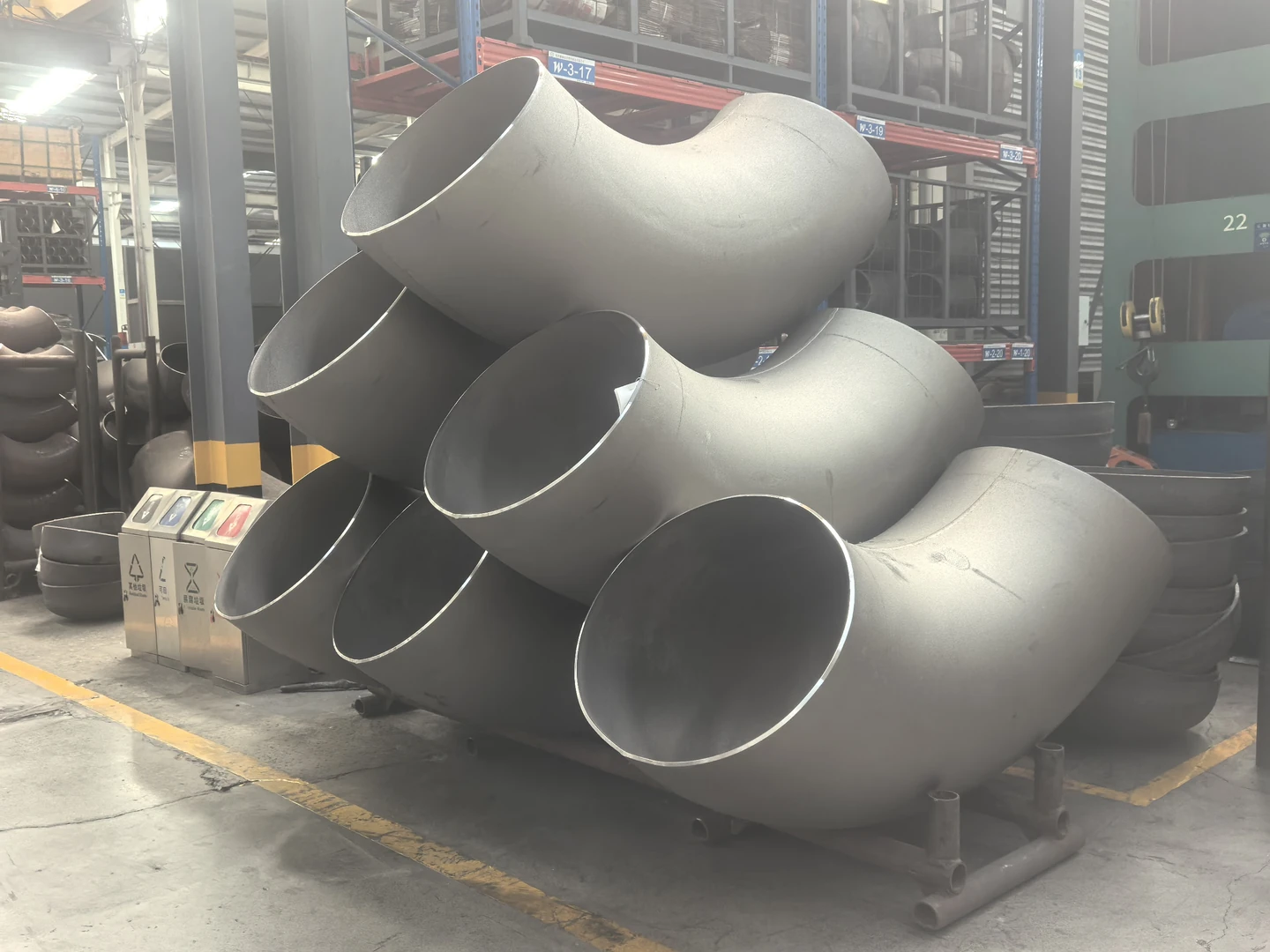

Stainless steel elbow with smooth hot-formed curvature, corrosion resistance, and stable pressure performance for chemical, seawater, ventilation, food, and pharmaceutical piping.



Key Features

• One-piece hot-pushed forming creates a smooth radius with low flow resistance.

• Stainless steel material resists acids, alkalis, salt spray, and long-term corrosion.

• Uniform wall thickness and regular welding bevels provide excellent pressure performance.

• Large-diameter specifications suit industrial high-flow corrosion-resistant pipeline direction changes.



Technical Specifications

• Material: 304/304L/316/316L/321 stainless steel

• ASTM WP304/WP316/WP321

• EN 1.4301/1.4307/1.4401/1.4404/1.4541

• JIS SUS304/SUS316/SUS321

• Russian stainless grades

• Standards: GB/T 12459, GB/T 13401, GB/T 14383

• ASME B16.9/ASTM A403/ASME B16.11/MSS SP-75

• EN 10253-4/EN 10216-5

• JIS B2312/G3459

• GOST 17378/17380/33259

• Angle Options: 90 degrees as standard; 45-degree and 180-degree elbows can be customized

• Nominal Diameter: DN100-DN1200 for stainless welded and seamless pipes

• Surface: Pickling and passivation with smooth burr-free inner wall



Applications

• Chemical pipelines for acidic, alkaline, and corrosive media Seawater desalination and coastal corrosion-resistant drainage systems Waste-gas, dust-removal, and clean ventilation large-diameter pipelines Food, pharmaceutical, and sterile fluid transport systems.



Ordering & Quality Documentation

For quotation, specify the fitting type, steel grade, nominal size, wall thickness or schedule, end preparation or connection, applicable dimensional standard, quantity and destination. Confirm compatibility with the adjoining pipework and project specification.



For project procurement, specify any required material test certificate (MTC), inspection report, certificate of origin or other shipment documentation in your inquiry. Document type, availability and applicability must be confirmed for the exact material grade, shipment and order; no blanket certification is implied.



Product FAQ

Q: How should I specify a compatible fitting?

A: Provide the nominal size, material grade, wall thickness or schedule, connection and applicable fitting standard.



Q: How are fitting documents confirmed?

A: State the required material and inspection documentation when requesting a quotation; confirm availability before ordering.



Request a Quote

Send MGTSP the required product specification, quantity and destination for a quotation. Any listed grades, processing options, inspection documents and delivery terms remain subject to order confirmation.
