Reinforcing Mesh

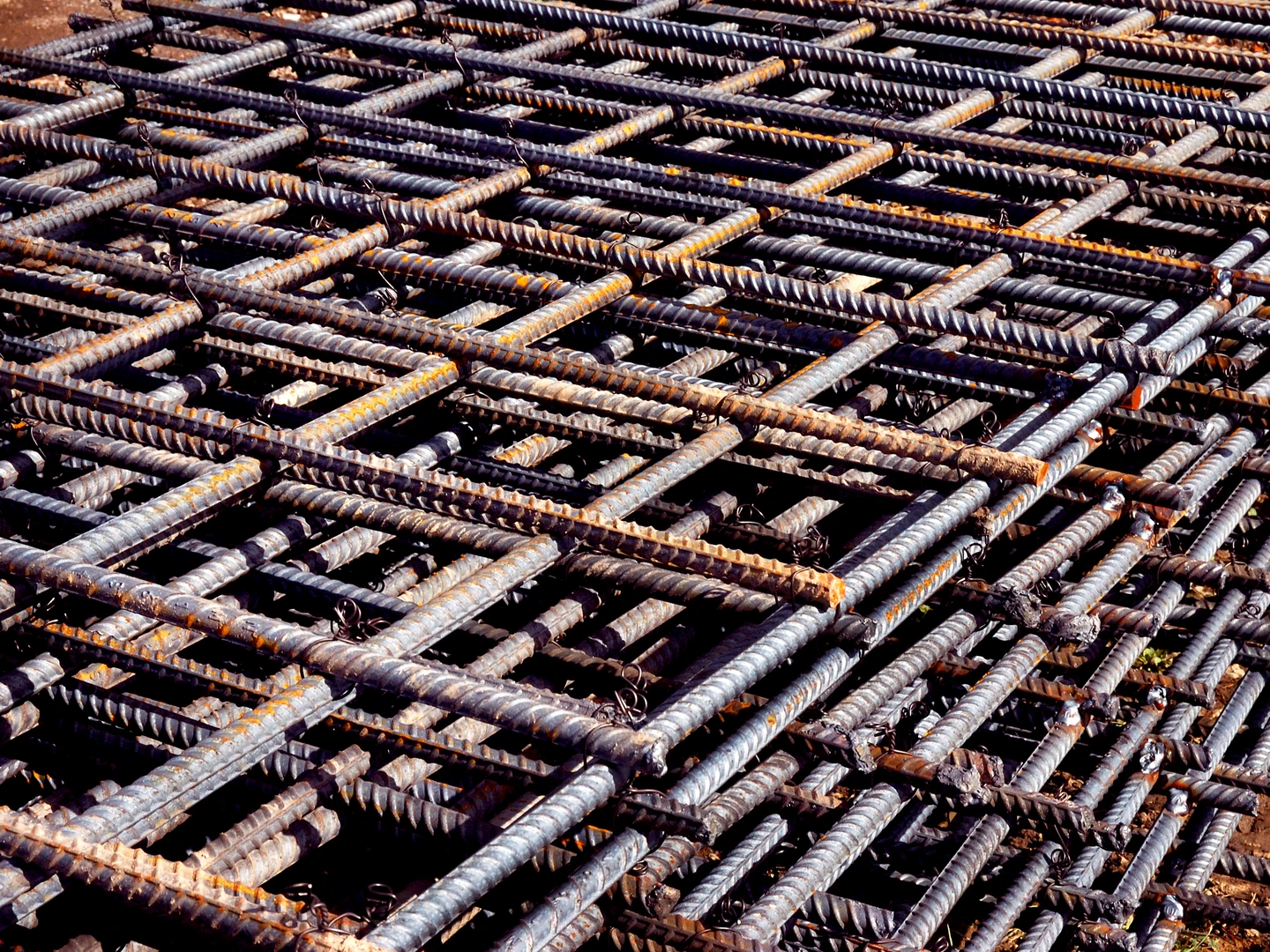

Precision welded reinforcing mesh made from ribbed steel bars, designed to improve concrete bonding, reinforcement strength, and construction efficiency.
| Material Grades: | China HRB400/HRB400E/HRB500/HRB500E/HRB600; EU B400A/B/C and B500A/B/C; Japan SD295/SD390/SD490; USA Gr40/Gr60/Gr75; Russia A400/A500/A600 |
| Standards: | China GB 1499.2, EU EN 10080, Japan JIS G3112, USA ASTM A615/ASTM A706, Russia GOST 5781 |
| Bar Diameter: | 6 mm, 8 mm, 10 mm, or 12 mm |
| Mesh Opening: | 100 x 100 mm, 150 x 150 mm, or 200 x 200 mm |
| Common Panel Size: | 2 m x 4 m; custom length and width are available |
Product Features
- Ribbed reinforcing bars are precision spot-welded into mesh panels with firm welds that are not easy to detach.
- Ribbed patterns improve bonding with concrete and provide strong reinforcement performance.
- Uniform grid spacing and flat panels improve installation accuracy and construction efficiency.
- High rigidity, load capacity, and tensile strength help prevent cracking in floors and walls.
Common Specifications
- Material grades: China HRB400/HRB400E/HRB500/HRB500E/HRB600; EU B400A/B/C and B500A/B/C; Japan SD295/SD390/SD490; USA Gr40/Gr60/Gr75; Russia A400/A500/A600.
- Standards: China GB 1499.2, EU EN 10080, Japan JIS G3112, USA ASTM A615/ASTM A706, Russia GOST 5781.
- Bar diameter: 6 mm, 8 mm, 10 mm, or 12 mm.
- Mesh opening: 100 x 100 mm, 150 x 150 mm, or 200 x 200 mm.
- Common panel size: 2 m x 4 m; custom length and width are available.
Applications
- Floor projects such as factory floors, parking lots, and road pavement reinforcement.
- Building structures such as slabs, walls, foundations, and basement concrete casting.
- Infrastructure projects such as bridges, tunnels, slope protection, and dam concrete works.
- Municipal roads, sidewalks, plazas, and running tracks requiring crack-control reinforcement.
