Product Introduction

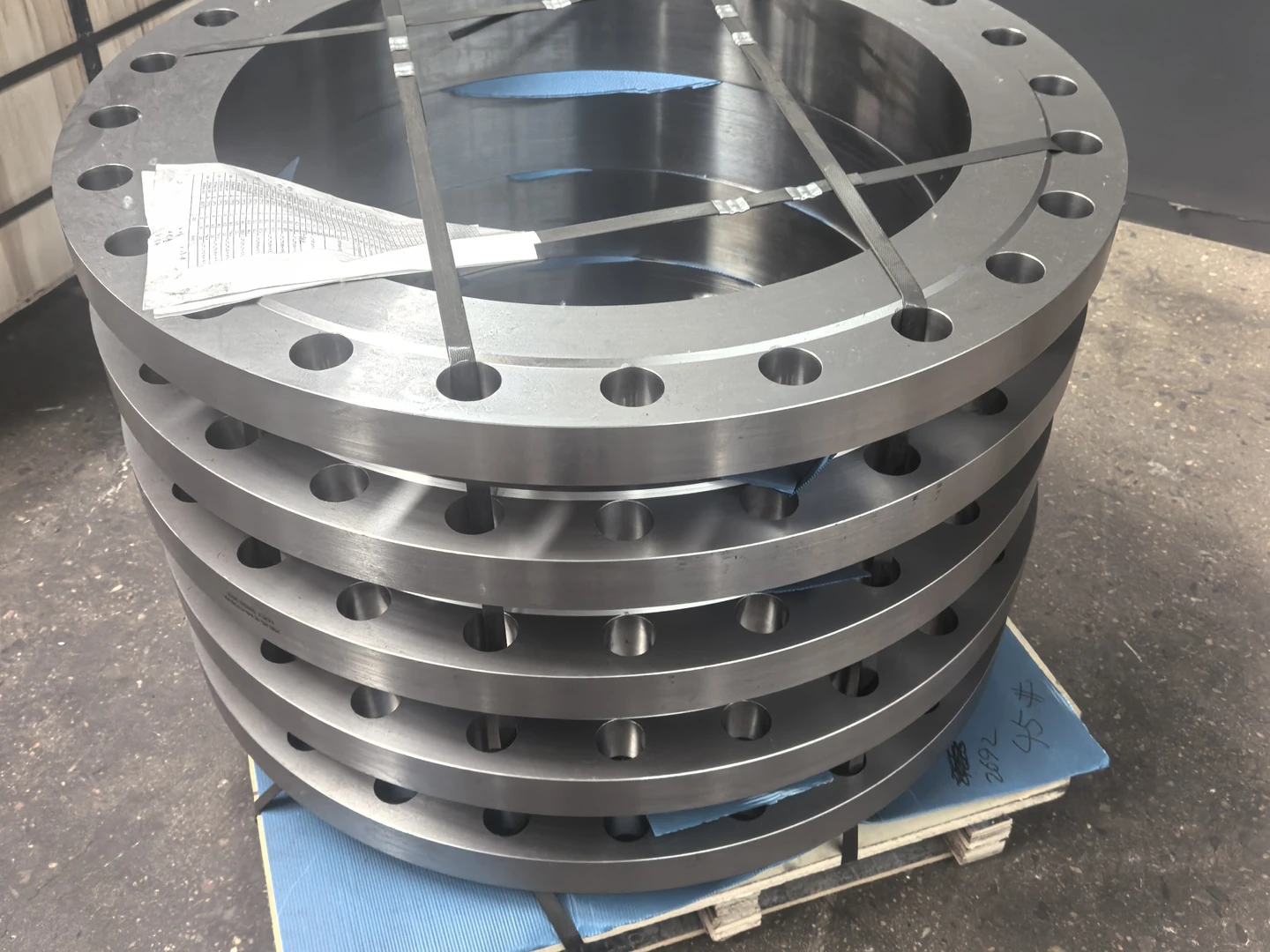

Large Diameter Carbon Steel Plate Slip On Flange is designed for project supply. Carbon steel slip-on flange for large-diameter low-pressure pipelines, offering flat machined sealing surfaces, accurate bolt holes, and easy installation or maintenance.



Key Features

• Machined plate construction provides a flat flange face and accurate gasket contact for reliable sealing.

• Carbon steel strength suits large-diameter pipe connections and removable pipeline joints.

• Symmetrical bolt-hole positioning supports fast alignment, assembly, and future maintenance.

• Slip-on welding design is simple to install on straight-seam and seamless steel pipes.



Technical Specifications

• Material: 20# carbon steel or Q235B

• Pressure Rating: PN6, PN10, and PN16 for common low-pressure service

• Nominal Diameter: DN300-DN2000

• GB and ASME dimensions can be customized

• Surface: Precision-machined bare surface; black anti-rust paint available on request



Applications

• Municipal water-supply, drainage, and sewage main pipelines Large ventilation and dust-removal ducting connections Plant cooling-water and low-pressure hot-water circulation lines Storage-tank inlet/outlet and removable pipe connection points.



Ordering & Quality Documentation

For quotation, specify the fitting type, steel grade, nominal size, wall thickness or schedule, end preparation or connection, applicable dimensional standard, quantity and destination. Confirm compatibility with the adjoining pipework and project specification.



For project procurement, specify any required material test certificate (MTC), inspection report, certificate of origin or other shipment documentation in your inquiry. Document type, availability and applicability must be confirmed for the exact material grade, shipment and order; no blanket certification is implied.



Product FAQ

Q: How should I specify a compatible fitting?

A: Provide the nominal size, material grade, wall thickness or schedule, connection and applicable fitting standard.



Q: How are fitting documents confirmed?

A: State the required material and inspection documentation when requesting a quotation; confirm availability before ordering.



Request a Quote

Send MGTSP the required product specification, quantity and destination for a quotation. Any listed grades, processing options, inspection documents and delivery terms remain subject to order confirmation.
